Introduction

The modern creator often requires a safety net when capturing valuable audio. Redundant recording ensures that a backup track is available if the primary signal fails, thereby protecting time and artistic investment. This guide explains how to configure a Focusrite Scarlett audio interface together with a Zoom handheld recorder to achieve seamless dual‑track capture. By following the instructions, one will obtain a robust workflow that works for music production, podcasting, and field recording alike.

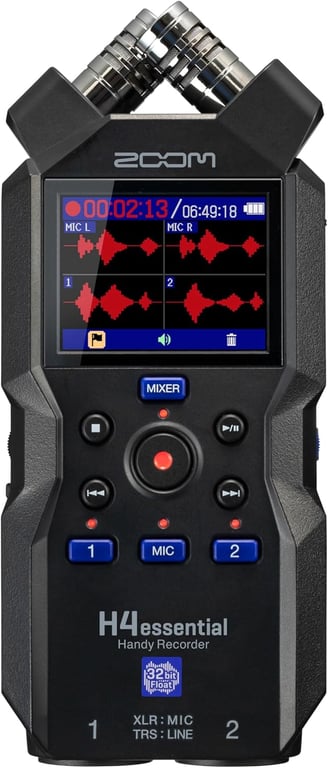

Although the exact models mentioned in the title are not part of the product list, the principles remain identical when using the available Focusrite Scarlett 2i2 4th Gen and the Zoom H4 Essential. Both devices provide high‑quality converters, low‑latency monitoring, and flexible routing options that make them ideal for redundant recording.

The guide is written for an intermediate audience familiar with basic DAW operation but seeking a reliable backup solution. All recommended tools are drawn from the supplied product data, and each recommendation includes price, rating, and a direct Amazon link.

What You'll Need

• Focusrite Scarlett 2i2 – $189.99, 4.5/5 rating
• Zoom H4 Essential – $170.99, 4.4/5 rating
• XLR cables (balanced) – not listed but required for connections
• USB‑C cable (included with both devices)
• Headphones for monitoring – any closed‑back pair
• DAW software (e.g., Pro Tools Intro+ or Ableton Live Lite, included with the Scarlett)

Step‑by‑Step Instructions

1. Install Drivers and Software

Begin by connecting the Focusrite Scarlett 2i2 to the computer via the supplied USB‑C cable. The interface includes a bundled software suite containing Pro Tools Intro+, Ableton Live Lite, Cubase LE, and the Hitmaker Expansion pack. Install the Focusrite Control application to manage input routing and monitor levels. The installation process is straightforward; the installer automatically detects the device and configures the drivers for both Windows and macOS.

Installing the software is essential because it provides the Auto Gain and Clip Safe features highlighted in the product description. Auto Gain quickly sets optimal input levels, while Clip Safe prevents distortion, both of which are critical when recording a backup track.

2. Connect the Zoom Recorder as a USB Audio Interface

Power on the Zoom H4 Essential and navigate to the USB menu. Select the "Audio Interface" mode, which allows the recorder to appear as a secondary sound card on the computer. Connect the recorder to the computer using a USB‑C cable. The H4 Essential will present two input channels (XLR/TRS) that can be routed directly into the DAW.

Using the Zoom as a USB interface provides a hardware‑level backup. Even if the Scarlett experiences a driver glitch, the Zoom will continue to capture the incoming signal to its internal SD card, guaranteeing a second copy of every take.

3. Route Audio in the DAW

Open the installed DAW (for example, Ableton Live Lite). Create two audio tracks: Track A will receive input from the Scarlett, and Track B will receive input from the Zoom. In the audio preferences, set the primary input device to "Focusrite Scarlett 2i2" and enable the secondary device "Zoom H4 Essential" as an additional input source.

Assign the microphone or instrument to the Scarlett's first XLR input. Then, using the DAW's routing matrix, send the same physical input to Track B via the Zoom's channel 1. This dual‑routing ensures that both devices record the identical signal simultaneously.

The Scarlett’s Air mode can be engaged for vocal recordings to add harmonic presence, as described in the product features. This setting does not affect the Zoom’s raw capture, preserving an unprocessed backup.

4. Configure Monitoring and Levels

Set the headphone output on the Scarlett to a comfortable listening level. The Scarlett 2i2 provides an independent volume control and a strong headphone amp, which is praised in user reviews for clean, loud output. Activate the Direct Monitoring switch on the Zoom if you wish to hear the backup feed without latency.

Use the Auto Gain function on the Scarlett to achieve a balanced level without clipping. The Zoom’s 32‑bit float recording, as noted in its description, will capture a wide dynamic range even if the input momentarily exceeds the Scarlett’s headroom. This combination yields a primary mix that sounds polished while preserving a safety net that can be edited later.

5. Record and Verify

Press record in the DAW. The interface will write the primary track to the computer’s hard drive, while the Zoom simultaneously writes a separate WAV file to its SD card. After a short test take, stop recording and check both locations. The Zoom’s file manager displays the recorded file name with date and time, simplifying verification.

If the primary track exhibits any glitches, the backup file can be imported back into the DAW for seamless replacement. This workflow eliminates the need for re‑recording sessions, saving both time and creative momentum.

6. Export and Archive

When the session is complete, export the primary mix from the DAW in the desired format (e.g., WAV 24‑bit). Then, copy the Zoom’s backup files from the SD card to a secure archive folder. Maintaining both versions ensures that any post‑production adjustments can be made using the clean, unprocessed backup if required.

Consider labeling the backup files with a "_REDUNDANT" suffix to differentiate them from the primary renders. This practice assists in future project organization and prevents accidental overwriting.

Tips & Pro Tips

• Use balanced XLR cables for both the Scarlett and the Zoom to minimize noise and interference.
• Enable the Scarlett’s Clip Safe indicator; it lights up when the input approaches the clipping threshold, allowing immediate gain adjustment.
• Set the Zoom’s input gain to a moderate level; the 32‑bit float engine will handle peaks without distortion, but extreme gain may introduce unwanted noise.
• Power the Zoom with USB‑C when possible to avoid battery drain during long sessions.
• Record a short “test tone” at the beginning of each session; this tone serves as a reference for aligning the two recordings during post‑production.

Troubleshooting

No sound from the Zoom backup: Verify that the USB mode is set to "Audio Interface" and that the SD card is properly inserted. Re‑format the card to FAT32 if the recorder fails to recognize it.

Latency between primary and backup tracks: The Scarlett’s latency is virtually nonexistent, but the Zoom may introduce a few milliseconds of delay. Align the tracks using the test tone recorded at the session start.

Clipping on the primary track: Reduce the gain on the Scarlett’s input knob or enable the Auto Gain function again. The Zoom will continue to capture the full dynamic range, preserving the take.

Conclusion

By integrating a Focusrite Scarlett interface with a Zoom handheld recorder, one creates a dependable redundant recording system that safeguards creative work. The workflow described leverages the Scarlett 2i2’s low‑noise preamps, Air mode, and Clip Safe features alongside the Zoom H4 Essential’s 32‑bit float recording and dual‑track capability. Following the step‑by‑step instructions ensures that both primary and backup files are captured simultaneously, verified quickly, and archived for future use.

Implementing this setup empowers musicians, podcasters, and content creators to record with confidence, knowing that a safety net exists for every performance.

Products Mentioned in This Guide

Frequently Asked Questions

What is redundant recording and why should I use it with a Scarlett interface and Zoom recorder?

Redundant recording captures the same audio on two devices simultaneously, providing a backup in case one track fails, ensuring you never lose valuable recordings.

How do I connect a Focusrite Scarlett 2i2 to a Zoom H4 for dual‑track capture?

Connect the Scarlett’s line outputs to the Zoom’s line inputs using 1/4" TRS to 3.5mm cables, then set both devices to record the same source.

Do I need to adjust latency settings for the Scarlett when recording redundantly?

Set the Scarlett’s buffer low enough for real‑time monitoring, but latency isn’t critical for the Zoom recorder since it records independently.

Can I monitor both recordings simultaneously without audio delay?

Yes; use the Scarlett’s direct monitoring feature for zero‑latency headphone playback while the Zoom records its own track.

What file formats should I use on the Zoom H4 to match the Scarlett’s DAW recordings?

Record in WAV (44.1 kHz/24‑bit) on the Zoom to match typical DAW settings, making post‑production syncing straightforward.
